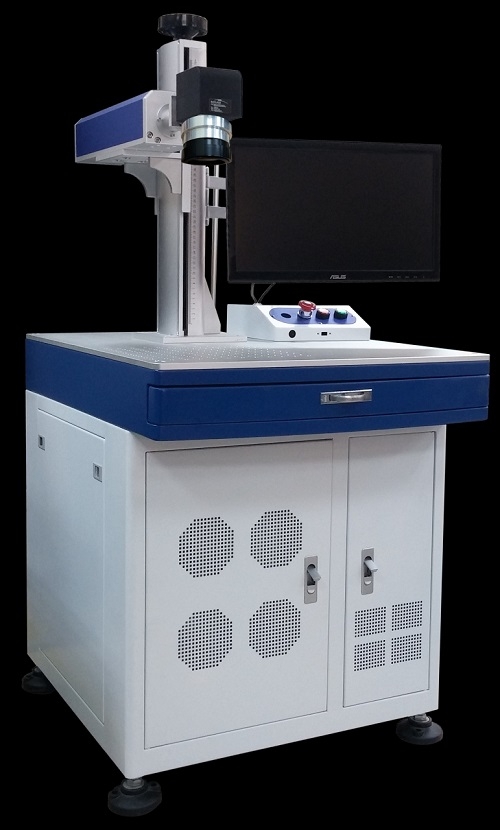

光纖雷射打標機

proimages/marker.jpg


Laser Type


Laser type

Fiber Laser

Wave length

1060-1070nm

Output power

20W

Pulse durations

fixed

Repetition rate

20-80KHZ

Output type

Pulse

Cooling

Air cool





























Marking
Type

Text, Graphic

Focus lens

100mm 160mm 254mm

Scanning area

65X65mm 100X100mm 170X170mm
Spot size    30um-70um
Resolution    5um
Accuracy resolution 25um
Repeat accuracy  10um
Marking speed  1.0m/s
Positioning speed    7.0m/s
總計 : 0
Outline

Dimensions( W×H×D )

1000X1320X500mm
Weights

Around 40kg

(It depends on the actual weights)

Equipment
Power

Single phase 110/220V, 50/60HZ, 10A

Enviornment

Temperature 5-40

proimages/marker2_-_.jpg
